101 (100) - Alternating bending test device

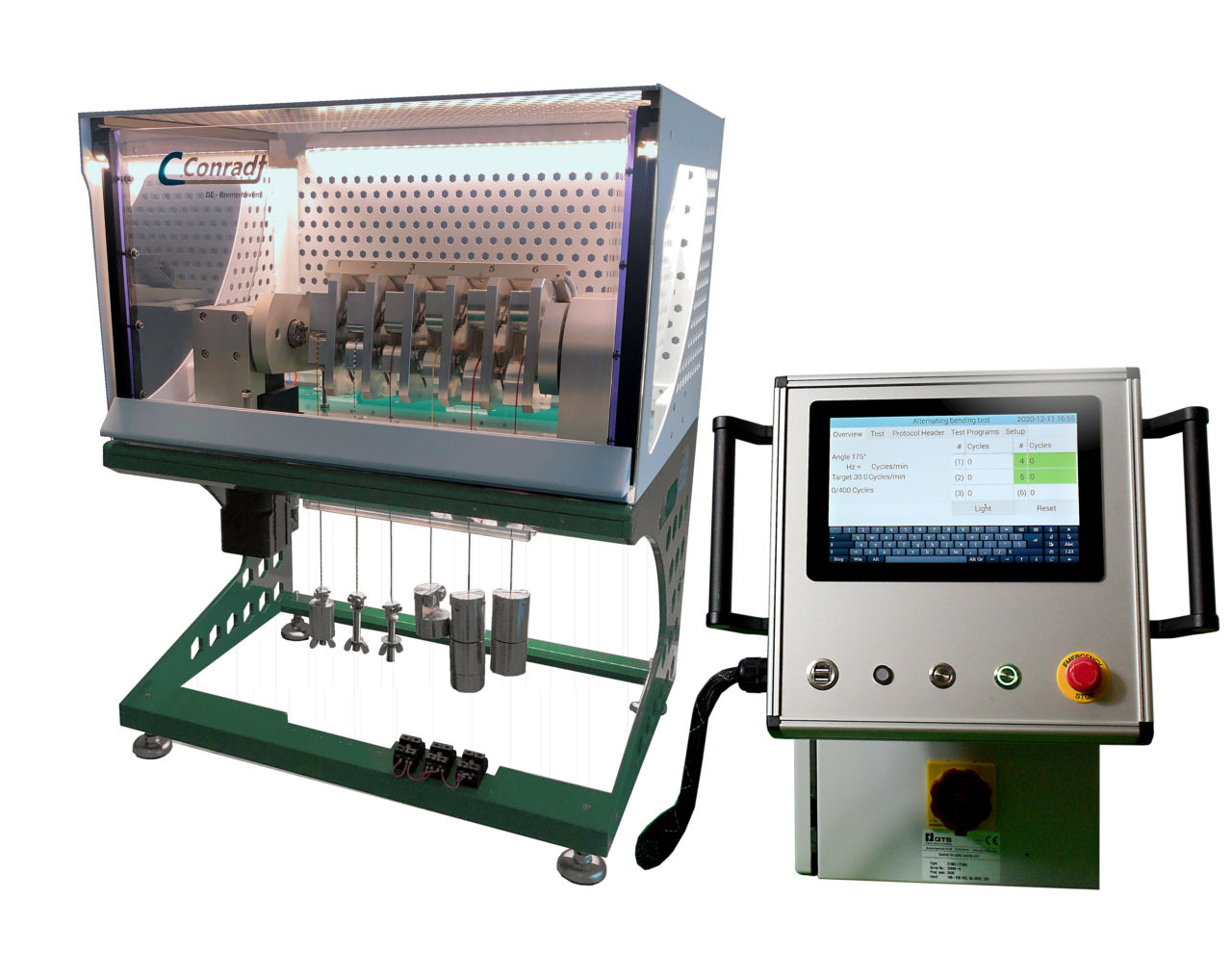

Alternating bending test device

For alternating bending resistance tests according to ISO DIS 19642-2 (ISO 14572) - LV 112
Holders for max. 6 test specimens
Exchangeable bending rollers or bending segments and weights
Continuous electronic cable breakage monitoring
Operating temperature -40 °C to +80 °C
Drive via programmable servo controller
various additional options are possible

  • Details
  • Option

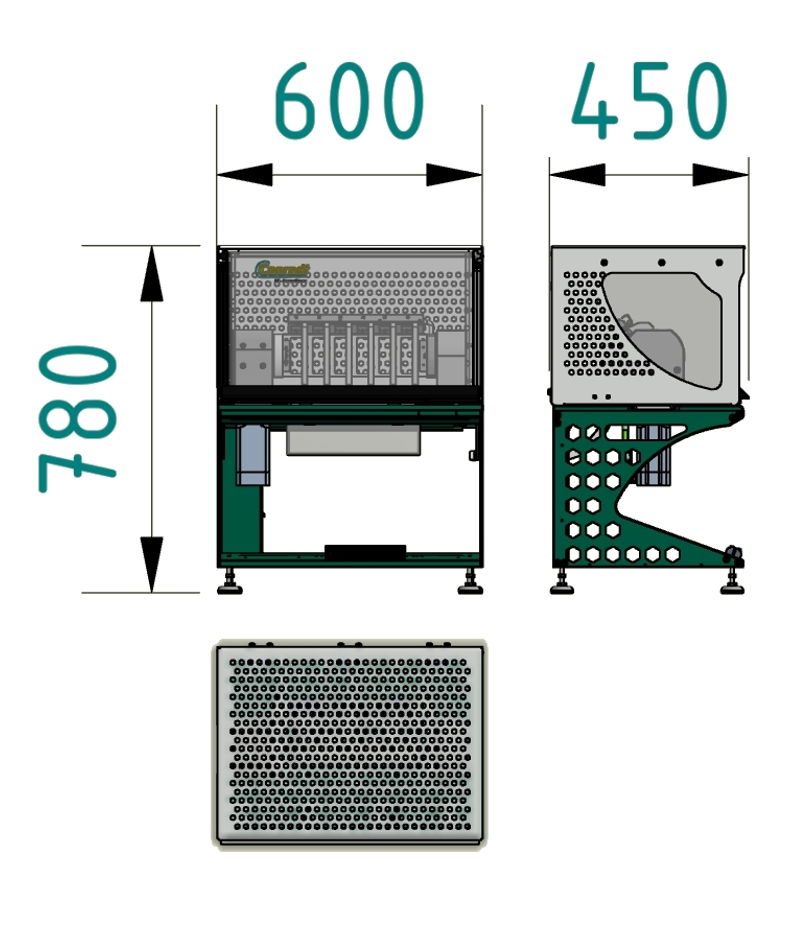

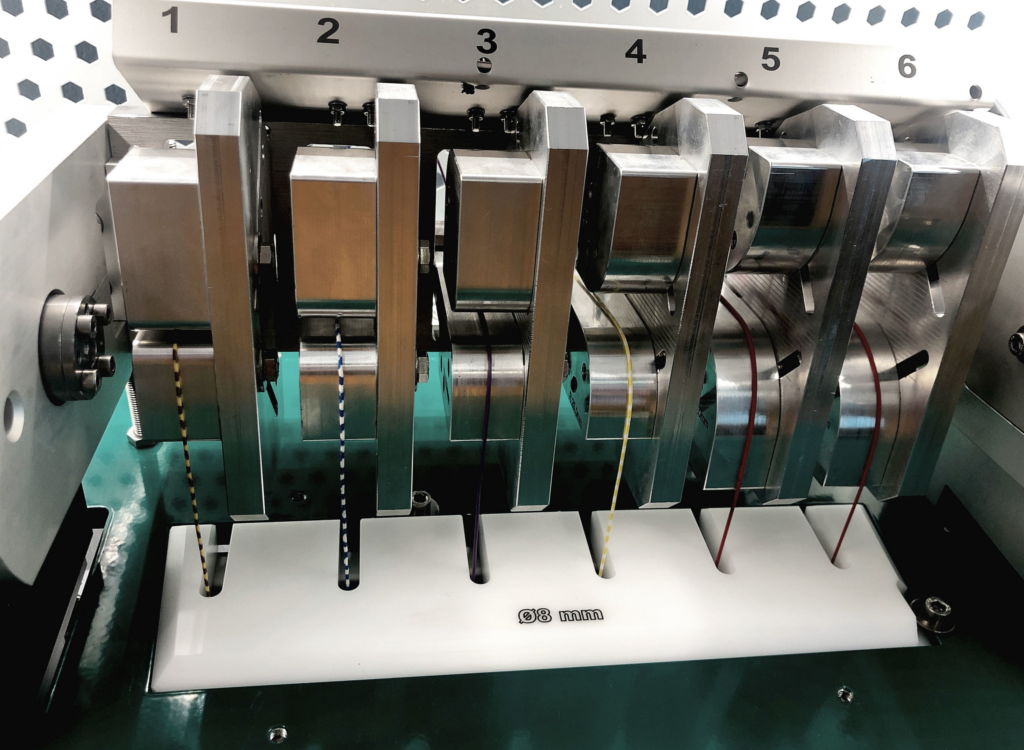

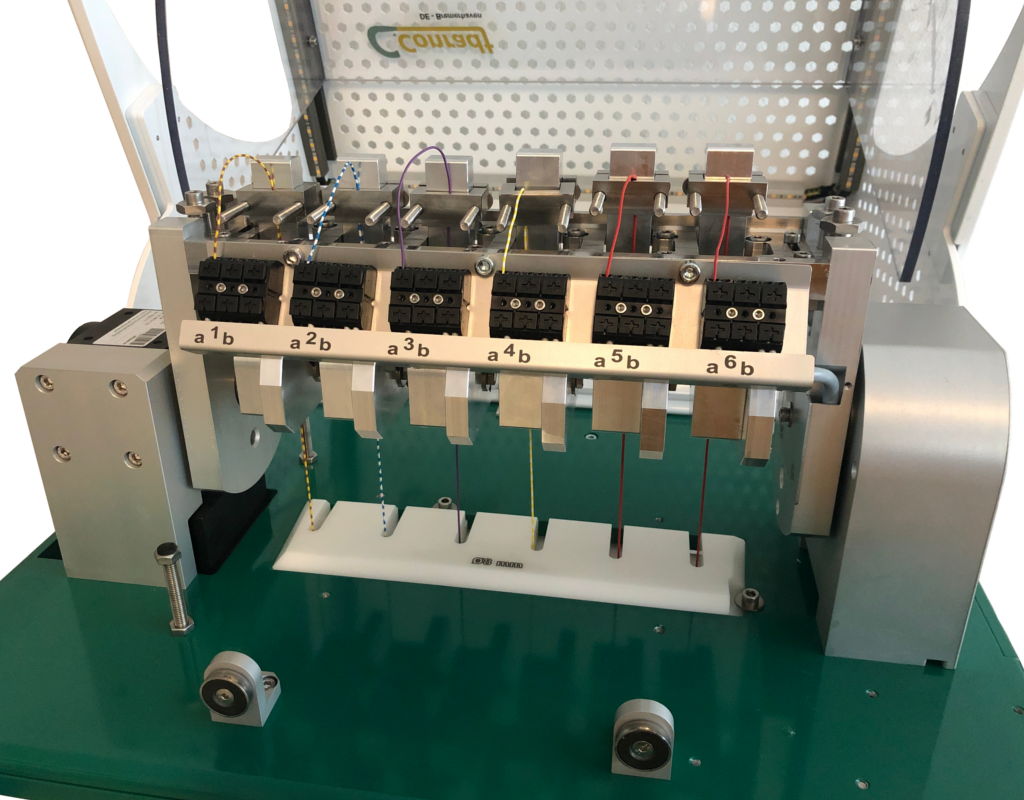

  • Swivel holder for 6 cable test specimens
  • Driven by servo motor. Smooth test sequence is thus always guaranteed
  • The test specimen holders are individually screwed to the swivel frame and can thus be retooled with various bending rollers and segments
  • Max. bending radius R 80 mm
  • Continuous continuity measurement with 0.1 A
  • Each cable breakage lasting at least 10 msec is logged
  • The controller is connected to the device by a 5-m long cable with plug
  • Control unit with colour touch display for inputting:
    • Stop if one cable already broken
    • Swivel angle from ±10° to ±90°
    • Number of test cycles
    • Rotary speed up to max. 60 rpm
    • Program number
  • Several selectable test modes:
    • Stop if all cables broken
    • Break if one cable already broken
    • Break at a freely programmable cycle count
    • Continuous run to the end of the specified number of test cycles
  • The system is designed for an environmental temperature of -40 °C to +80 °C
  • Only rustproof material is used
  • 230 V AC; 50 Hz; 2,3 kW

  • Custom and new designs of all kinds
  • System complete with climatic chamber
  • Communication with PLC of the climatic chamber
  • Temperature measurement and logging
  • Continual resistance measurement
  • Storage and output via
    • USB or TCP/IP to the PC:
    • START / STOP date and time
    • Test parameters
    • Test modes
  • Individual design of the input mask and sequence control

    This device was developed in co-operation with LABCO.
